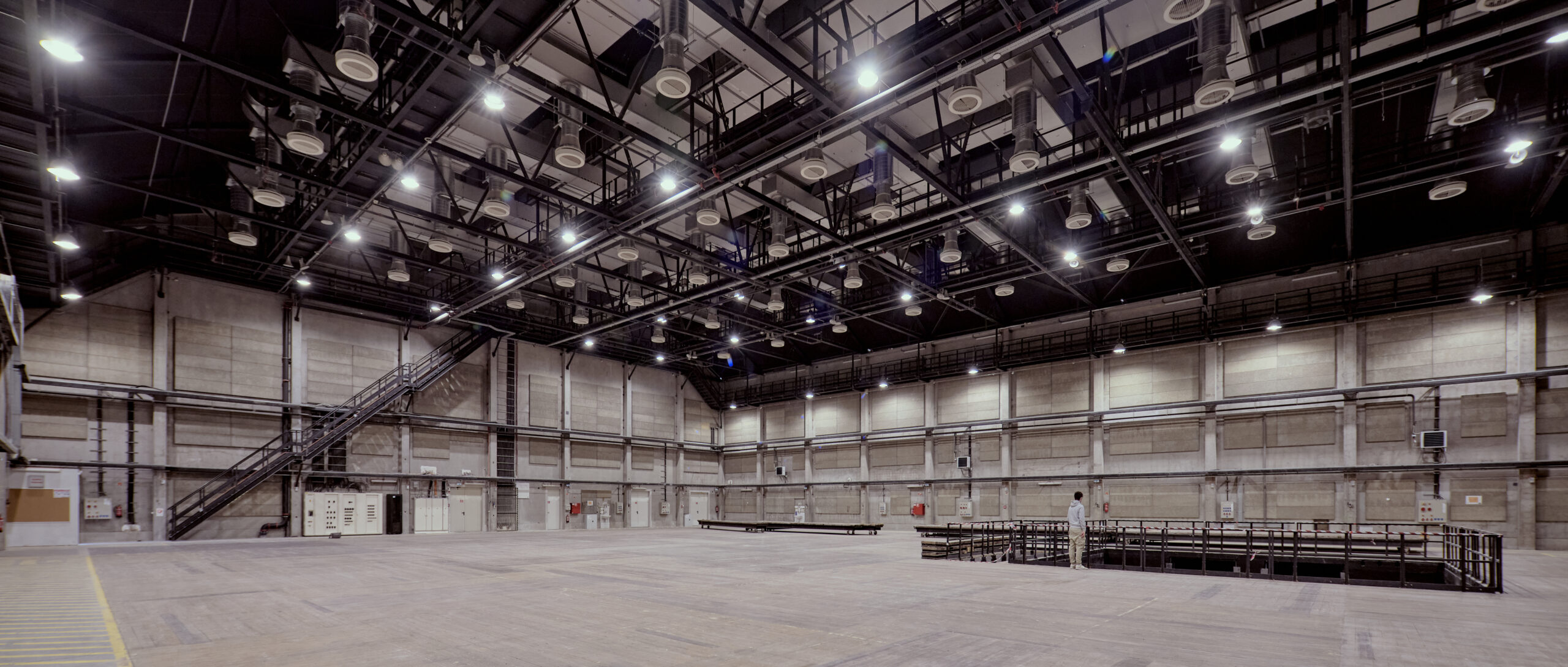

Stage 1
The 2 002 m² (21 549 ft²) studio features a 4m deep, 10m X 10m water tank, which can be covered if needed.
| Description | Meters | Feet |
|---|---|---|
| length | 49.4 m | 160.7 ft |
| width | 39.4 m | 127.9 ft |
| area (net) | 1 946 m² | 20 946 ft² |
| area (gross) | 2 002 m² | 21 549 ft² |
| working height | 10.95 m | 36 ft |
| building height | 17 m | 56 ft |
| studio doors | 4.6 x 7 m | 13.1 x 22.9 ft |
| electricity | 800 kW | |
| catwalks | 4 | |
| suspension points (500 kg) | 110 | |
| soundproofing | NC 25 | |
| watertank | 100 m² (10 x 10 m) | 1 076 sq. ft (32.8×32.8 ft) |
| watertank depth | 4.3 m (2 windows) | 13.1 ft (2 windows) |
